Solder Lug Plug

Detail Specifications

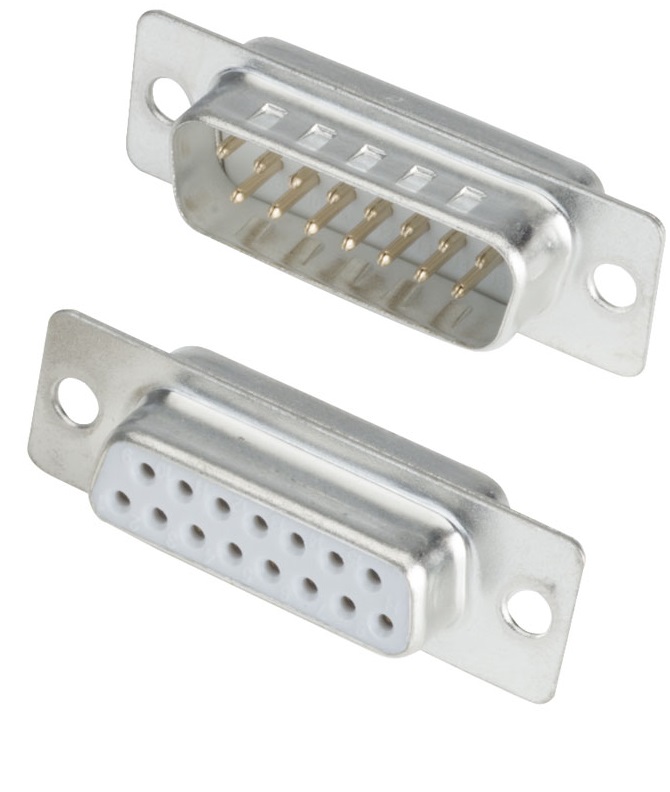

Commercial D Plug & Socket, 2.84mm pitch, straight orientation.

•Solder termination method
•Copper alloy contact material
•Gold over nickel contact plating
•Tin plated steel shell material, white colour
•5A current rating
•1kV dielectric strength
•Gold plated stamped contacts
•Tinned and dimpled steel shells
•Allows full grounding for EM/RFI shielding
•Meets dimensional requirements of MIL-C-24308
•PBT glass reinforced insulator
•Flame retardant to UL94V-0

13802-001

Commercial D plug with 9 ways

13802-002

Commercial D socket with 9 ways

13802-003

Commercial D plug with 15 ways

13802-004

 Commercial D socket with 15 ways

13802-005

Commercial D plug with 25 ways

13802-006

Commercial D socket with 25 ways
