D6 Square Black Keyboard Switch

Detail Specifications

PCB keyboard switch. Switches can be mounted on a 12.7mm pitch. Strapped terminals allow for the possibility of X, Y coding.



•SPST contact
•Momentary operation
•10mA contact current
•35Vdc contact voltage
•1.3N operating force
•0.8mm travel
•20mR contact resistance
•-20°C to +65°C operating temperature
•12mm wide, 5.8mm high

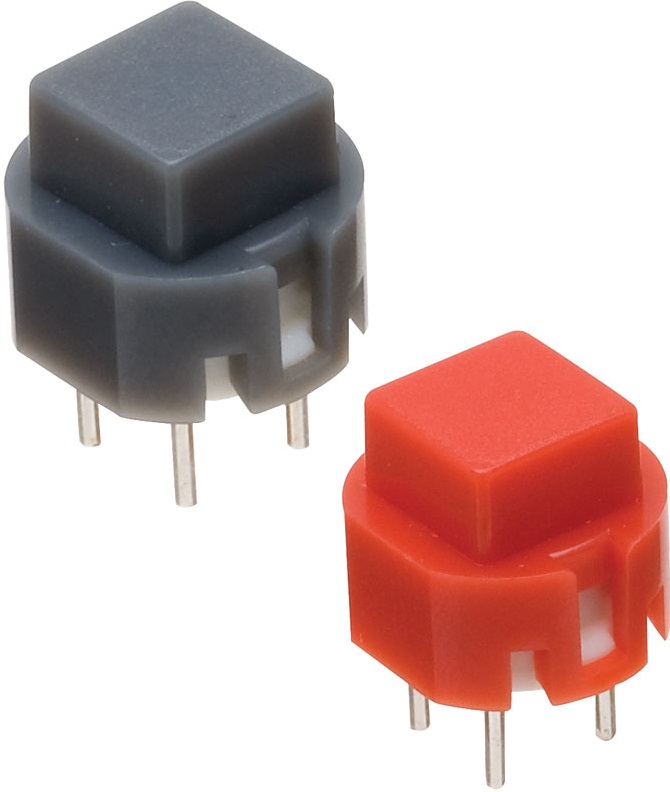

•Square





21001-001

Black



21001-002

Red



21001-003

Grey

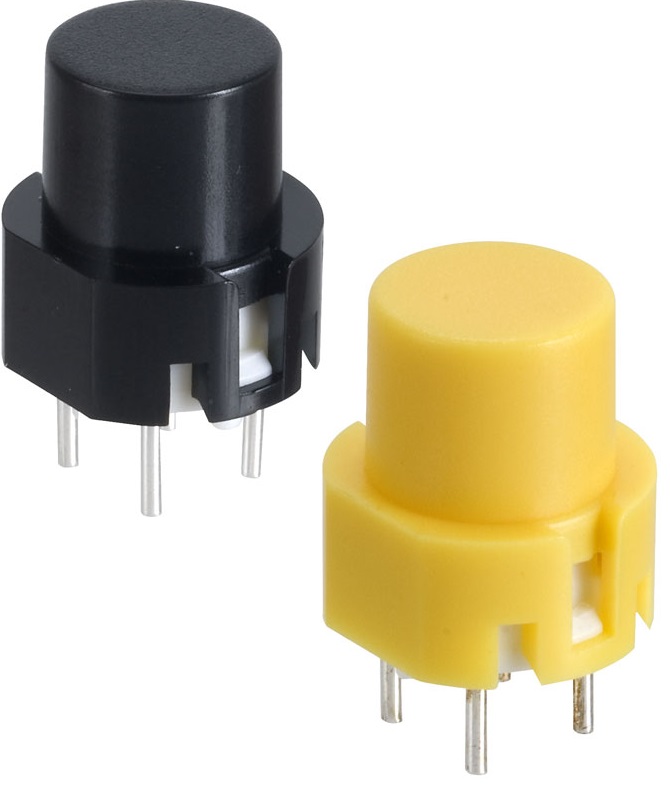

•Round





21001-004

Black



21001-005

White



21001-006

Red



21001-007

Yellow



21001-008

Blue



21001-009
Grey
