DPST Visible On Rocker Switch

Detail Specifications

Miniature visible ON double pole rocker switch .
•On-off operation
•10A contact current
•250V AC contact voltage
•Brass contact, silver plated
•19.8 x 13mm panel
•Quick connect terminal
•Non-illuminated
•21mm long, 15mm wide, 24mm high
•Contact rating 10A 125V AC, 6A 250V AC
•Snap-in mounting,
•Maximum panel thickness 3mm
•4.8 x 4.8 x 0.8mm terminals
•Waterproof cover for the switch is also available
•Nylon frame to UL 94V-2

10335-001

WITH RED MARKING

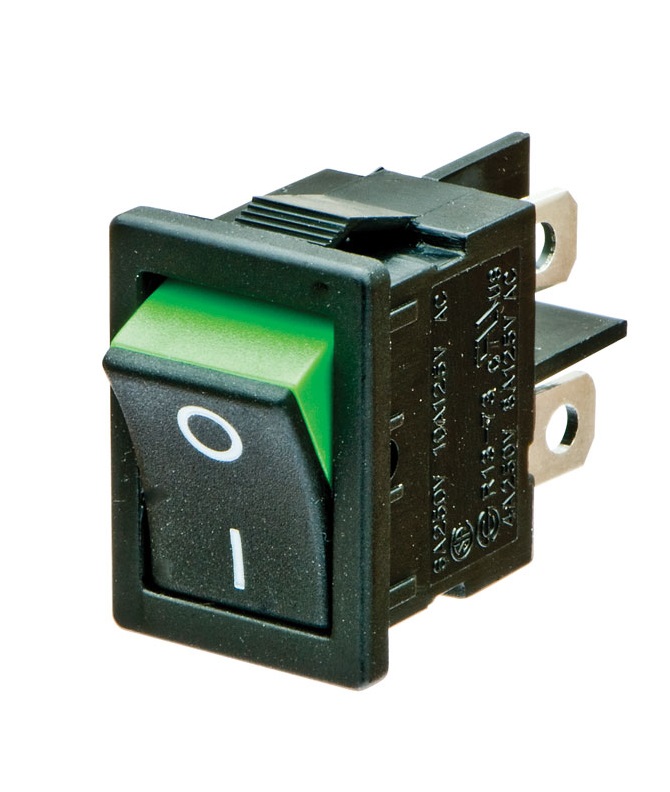

10335-002

WITH GREEN MARKING
