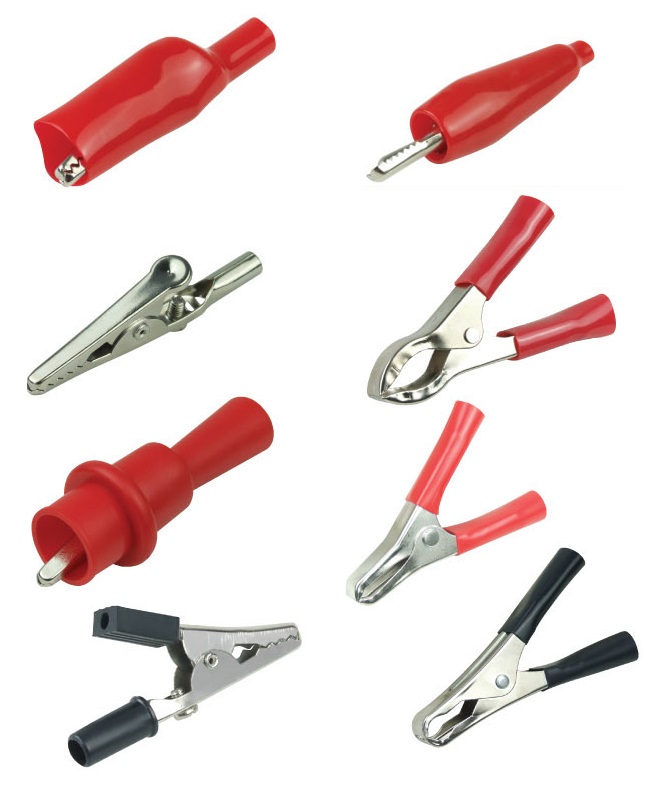

Crocodile clip
- Model Code: 13012
- Brand:

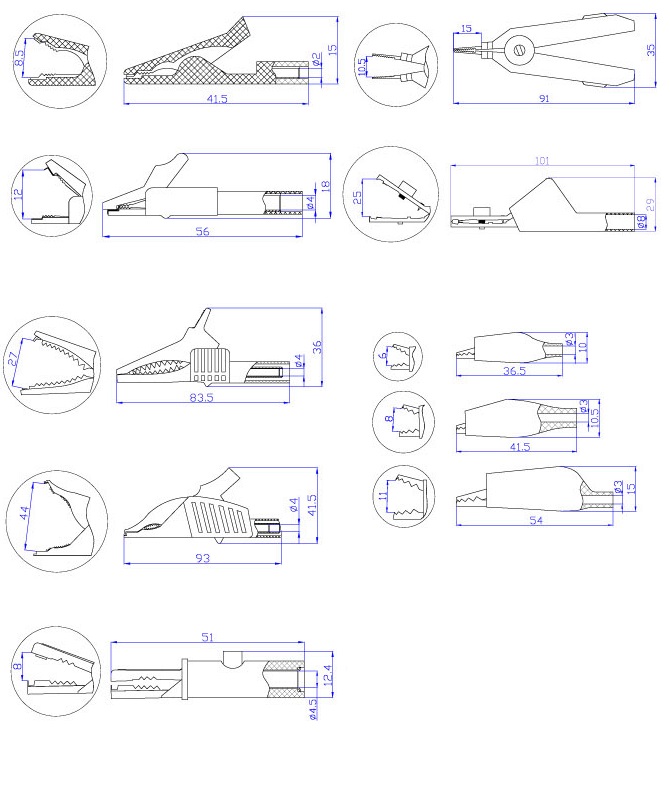

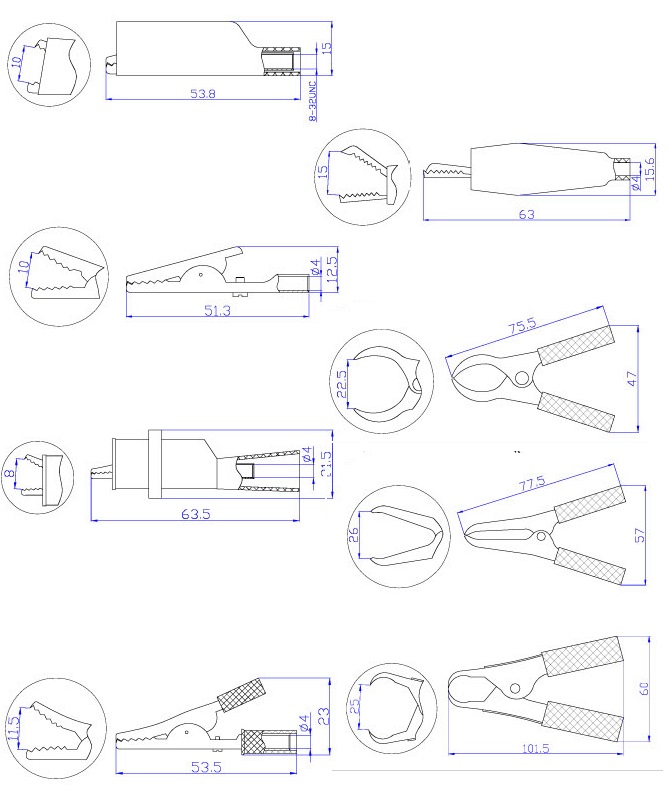

Detail Specifications
| Model Code | Manufacturer Code | Insulator | Body | Surface | Rated voltage/current |
| 13012-001 | CC187 | PA | Brass | Nickel plated | 30Vac-60Vdc/Max.10A |
| 13012-002 | CC258 | PA | Brass | Nickel plated | CATII 300V/Max.15A |
| 13012-003 | CC262 | PA | Brass | Nickel plated | CATIII 1000V/Max.32 |
| 13012-004 | CC263 | PA | Brass | Nickel plated | CATIII 1000V/Max.32 |
| 13012-005 | CC259 | ABS | Steel | Nickel plated | 30Vac-60Vdc/Max.19A |
| 13012-006 | CC320 | ABS | Brass | Gold plated | |
| 13012-007 | CC330 | PVC | Brass | Nickel plated | |
| 13012-008 | CC710 | PVC | Steel | Nickel plated | |
| 13012-009 | CC711 | PVC | Steel | Nickel plated | |
| 13012-010 | CC712 | PVC | Steel | Nickel plated | |
| 13012-011 | CC714 | PVC | Steel | Nickel plated | |
| 13012-012 | CC716 | Steel | Nickel plated | Max.10A | |
| 13012-013 | CC718 | PVC | Steel | Nickel plated | |
| 13012-014 | CC719 | ABS | Steel | Nickel plated | |
| 13012-015 | CC720 | PVC | Steel | Nickel plated | |
| 13012-016 | CC722 | PVC | Steel | Nickel plated | Max.30A |
| 13012-017 | CC723 | PVC | Steel | Nickel plated | Max.30A |
| 13012-018 | CC211 | PVC | Steel | Nickel plated | Max.50A |
