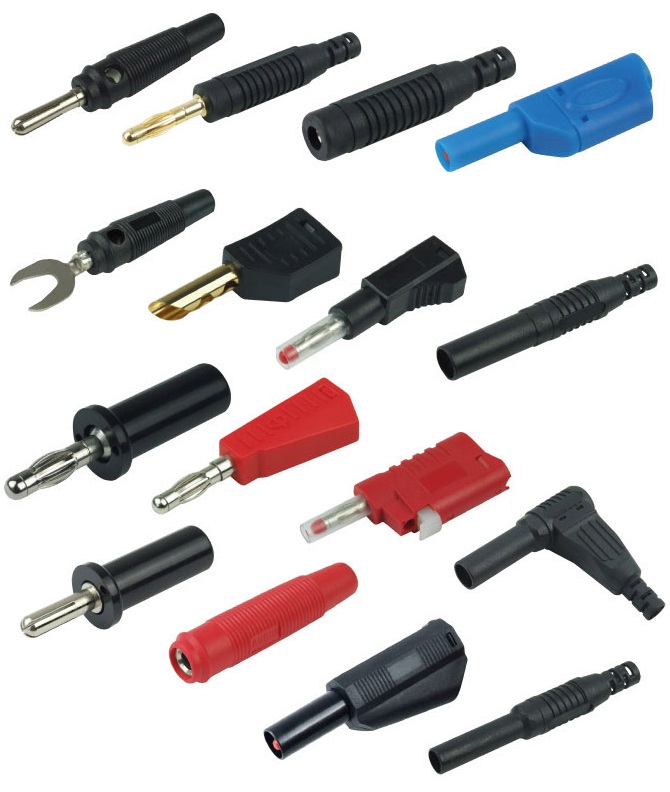

Banana Plug
- Model Code: 13010
- Brand:

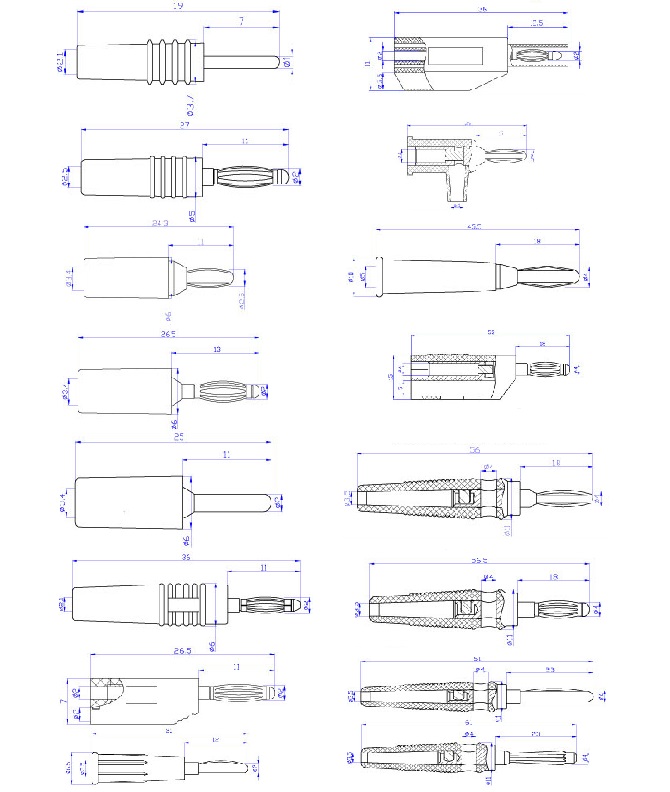

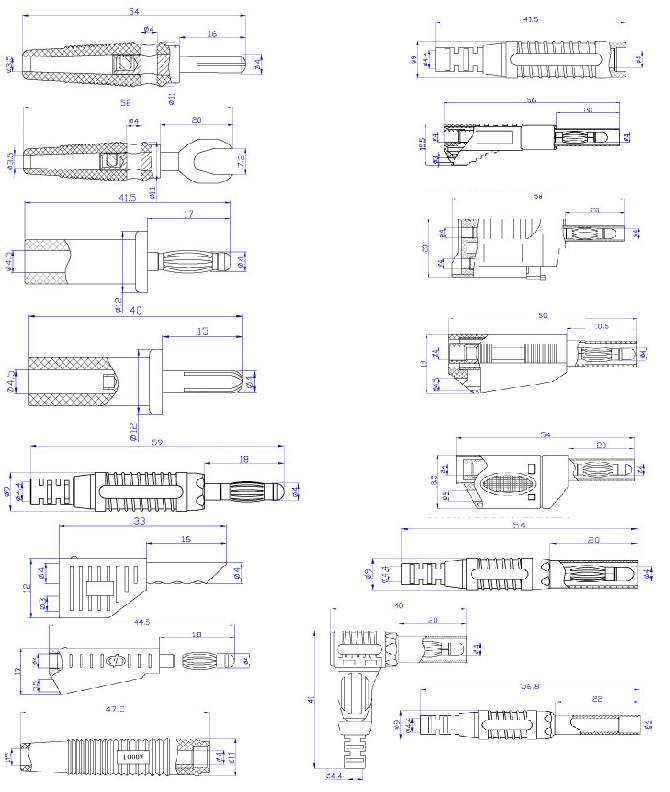

Detail Specifications
| Model Code | Manufacturer Code | Insulator | Body | Spring | Surface | Connection | Rated voltage/current |
| 13010-001 | BP101 | PVC | Brass | Gold plated | Solder | 30Vac-60Vdc/Max.6A | |
| 13010-002 | BP201 | PVC | Brass | Beryllium copper | Gold plated | Solder | 30Vac-60Vdc/Max.10A |
| 13010-003 | BP202 | PE | Brass | Beryllium copper | Gold plated | Solder | 30Vac-60Vdc/Max.12A |
| 13010-004 | BP203 | PE | Brass | Beryllium copper | Gold plated | Solder | 30Vac-60Vdc/Max.10A |
| 13010-005 | BP204 | PE | Brass | Nickel plated | Solder | 30Vac-60Vdc/Max.10A | |
| 13010-006 | BP205 | PVC | Brass | Beryllium copper | Gold plated | Solder | 30Vac-60Vdc/Max.10A |
| 13010-007 | BP206 | PE | Brass | Beryllium copper | Gold plated | Solder | 30Vac-60Vdc/Max.10A |
| 13010-008 | BP207 | PE | Brass | Beryllium copper | Gold plated | Solder | 30Vac-60Vdc/Max.10A |
| 13010-009 | BP208 | PA | Brass | Beryllium copper | Nickel plated | Solder | CATII 600V/Max.10A |
| 13010-010 | BP401 | ABS | Brass | Beryllium copper | Nickel plated | Screw | 30Vac-60Vdc/Max.24A |
| 13010-011 | BP402 | ABS | Brass | Phosphorus copper | Nickel plated | Solder | 30Vac-60Vdc/Max.19A |
| 13010-012 | BP403 | PE | Brass | Beryllium copper | Nickel plated | Screw | 30Vac-60Vdc/Max.32A |
| 13010-013 | BP410 | PVC | Brass | Steel | Nickel plated | Screw | 30Vac-60Vdc/Max.24A |
| 13010-014 | BP411 | PVC | Brass | Steel | Nickel plated | Screw | 30Vac-60Vdc/Max.24A |
| 13010-015 | BP412 | PVC | Brass | Beryllium copper | Nickel plated | Screw | 30Vac-60Vdc/Max.24A |
| 13010-016 | BP413 | PVC | Brass | Phosphorus copper | Nickel plated | Screw | 30Vac-60Vdc/Max.24A |
| 13010-017 | BP414 | PVC | Brass | Nickel plated | Screw | 30Vac-60Vdc/Max.32A | |
| 13010-018 | BP415 | PVC | Brass | Nickel plated | Screw | 30Vac-60Vdc/Max.24A | |
| 13010-019 | BP420 | ABS | Brass | Nickel plated | Screw | 30Vac-60Vdc/Max.24A | |
| 13010-020 | BP421 | ABS | Brass | Nickel plated | Solder | 30Vac-60Vdc/Max.24A | |
| 13010-021 | BP422 | PA | Brass | Beryllium copper | Gold plated | Solder | 30Vac-60Vdc/Max.24A |
| 13010-022 | BP425 | PE | Beryllium copper | Beryllium copper | Gold plated | Solder | 30Vac-60Vdc/Max.19A |
| 13010-023 | BP426 | PE | Brass | Steel | Nickel plated | Solder | 30Vac-60Vdc/Max.19A |
| 13010-024 | BP430 | PVC | Brass | Nickel plated | Screw | 30Vac-60Vdc/Max.24A | |
| 13010-025 | BP431 | PVC | Brass | Nickel plated | Solder | 30Vac-60Vdc/Max.24A | |
| 13010-026 | BP450 | PA | Brass | Beryllium copper | Nickel plated | Solder | 30Vac-60Vdc/Max.32A |
| 13010-027 | BP451 | PA | Brass | Beryllium copper | Nickel plated | Press | 30Vac-60Vdc/Max.32A |
| 13010-028 | BP501 | PA | Brass | Beryllium copper | Nickel plated | Solder | CATII 600V/Max.32A |
| 13010-029 | BP502 | PA | Brass | Beryllium copper | Nickel plated | Solder | CATII 1000V/Max.32A |
| 13010-030 | BP503 | PA | Brass | Beryllium copper | Nickel plated | Solder | CATII 1000V/Max.32A |
| 13010-031 | BP504 | PA | Brass | Beryllium copper | Nickel plated | Solder | CATII 1000V/Max.32A |
| 13010-032 | BP505 | PA | Brass | Nickel plated | Solder | CATII 600V/Max.19A |
