Panel Socket
- Model Code: 13008
- Brand:
Detail Specifications
| Model Code | Insulator | Body | Surface | Rated voltage/current | |
| 13008-001 | PS101 | PA | Brass | Gold plated | 30Vac-60Vdc/Max.10A |
| 13008-002 | PS102 | ABS | Brass | Nickel plated | 30Vac-60Vdc/Max.6A |
| 13008-003 | PS103 | PA | Brass | Nickel plated | 30Vac-60Vdc/Max.10A |
| 13008-004 | PS104 | PA | Brass | Nickel plated | 30Vac-60Vdc/Max.10A |
| 13008-005 | PS106 | ABS | Brass | Nickel plated | 30Vac-60Vdc/Max.10A |
| 13008-006 | PS107 | ABS | Brass | Nickel plated | 30Vac-60Vdc/Max.10A |
| 13008-007 | PS110 | PA | Brass | Gold plated | 30Vac-60Vdc/Max.10A |
| 13008-008 | PS111 | PA | Brass | Gold plated | 30Vac-60Vdc/Max.10A |

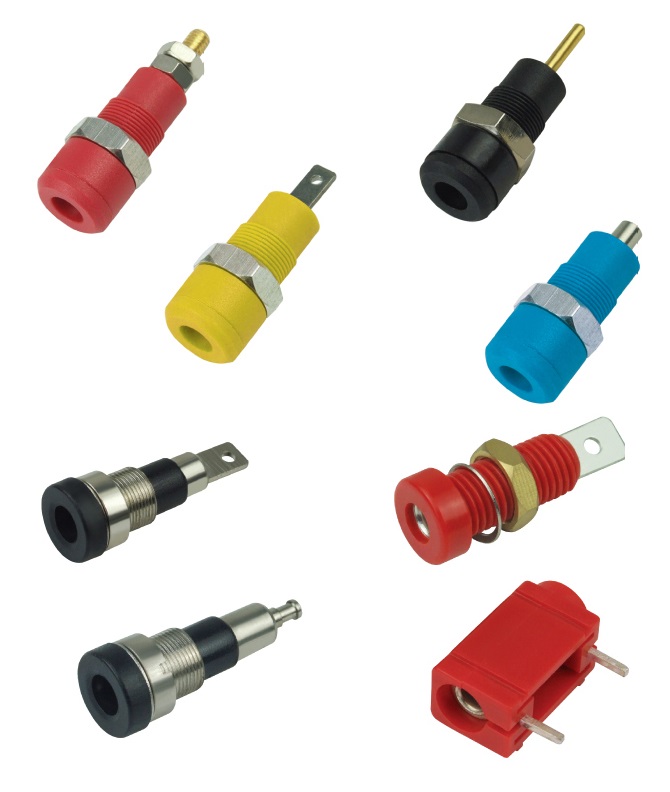

| 13008-009 | PS131 | PA | Brass | Nickel or Gold plated | CATIII 600V/Max.10A |
| 13008-010 | PS132 | PA | Brass | Nickel or Gold plated | CATIII 600V/Max.10A |
| 13008-011 | PS133 | PA | Brass | Nickel or Gold plated | CATIII 600V/Max.10A |
| 13008-012 | PS134 | PA | Brass | Nickel or Gold plated | CATIII 600V/Max.10A |
| 13008-013 | PS241 | PA | Brass | Nickel plated | 30Vac-60Vdc/Max.24A |
| 13008-014 | PS242 | PA | Brass | Nickel plated | 30Vac-60Vdc/Max.24A |
| 13008-015 | PS243 | PA | Brass | Silver plated | 30Vac-60Vdc/Max.24A |
| 13008-016 | PS244 | ABS | Brass | Zinc plated | 30Vac-60Vdc/Max.24A |

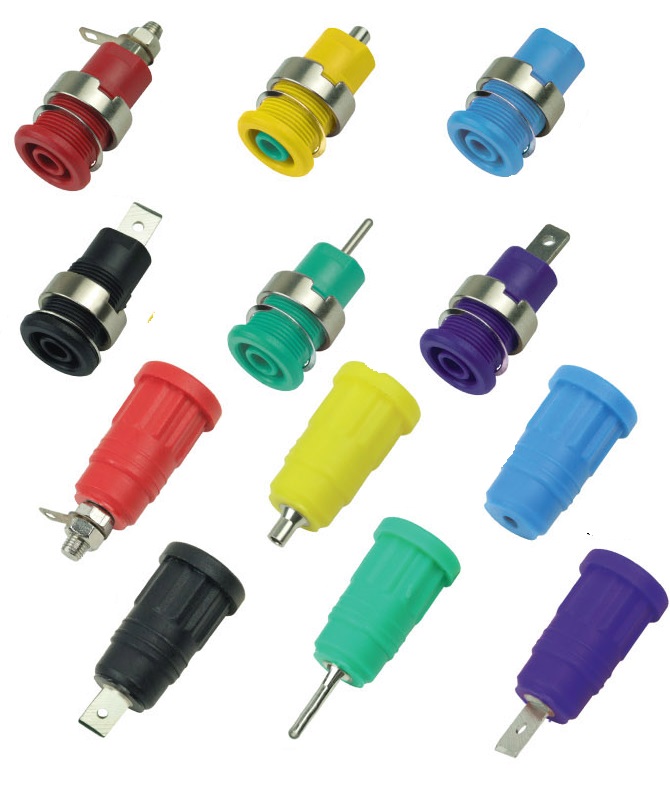

| 13008-017 | P301 | PA | Brass | Nickel plated | CATIII 1000V/Max.32A |
| 13008-018 | P302 | PA | Brass | Nickel plated | CATIII 1000V/Max.32A |
| 13008-019 | P303 | PA | Brass | Nickel plated | CATIII 1000V/Max.24A |
| 13008-020 | P304 | PA | Brass | Nickel plated | CATIII 1000V/Max.32A |
| 13008-021 | P305 | PA | Brass | Nickel plated | CATIII 1000V/Max.32A |
| 13008-022 | P306 | PA | Brass | Nickel plated | CATIII 1000V/Max.32A |
| 13008-023 | P311 | PA | Brass | Nickel plated | CATIII 1000V/Max.32A |
| 13008-024 | P312 | PA | Brass | Nickel plated | CATIII 1000V/Max.32A |
| 13008-025 | P313 | PA | Brass | Nickel plated | CATIII 1000V/Max.24A |
| 13008-026 | P314 | PA | Brass | Nickel plated | CATIII 1000V/Max.32A |
| 13008-027 | P315 | PA | Brass | Nickel plated | CATIII 1000V/Max.32A |
| 13008-028 | P316 | PA | Brass | Nickel plated | CATIII 1000V/Max.32A |
| 13008-029 | P321 | PA | Brass | Nickel plated | CATIII 1000V/Max.32A |
| 13008-030 | P322 | PA | Brass | Nickel plated | CATIII 1000V/Max.32A |
| 13008-031 | P323 | PA | Brass | Nickel plated | CATIII 1000V/Max.24A |
| 13008-032 | P324 | PA | Brass | Nickel plated | CATIII 1000V/Max.32A |
| 13008-033 | P325 | PA | Brass | Nickel plated | CATIII 1000V/Max.32A |
| 13008-034 | P326 | PA | Brass | Nickel plated | CATIII 1000V/Max.32A |

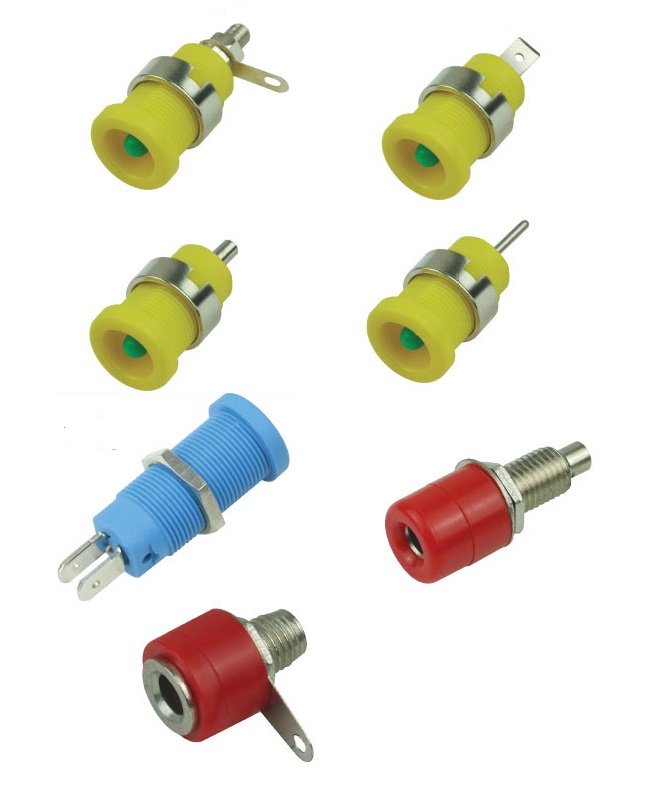

| 13008-035 | P381 | PA | Brass | Nickel plated | CATIII 1000V/Max.32A |
| 13008-036 | P382 | PA | Brass | Nickel plated | CATIII 1000V/Max.32A |
| 13008-037 | P383 | PA | Brass | Nickel plated | CATIII 1000V/Max.24A |
| 13008-038 | P384 | PA | Brass | Nickel plated | CATIII 1000V/Max.32A |
| 13008-039 | P391 | PA | Brass | Nickel plated | CATIII 1000V/Max.32A |
| 13008-040 | P392 | PA | Brass | Nickel plated | CATIII 1000V/Max.32A |
| 13008-041 | P393 | PA | Brass | Nickel plated | CATIII 1000V/Max.24A |
| 13008-042 | P394 | PA | Brass | Nickel plated | CATIII 1000V/Max.32A |
| 13008-043 | P260 | PA | Brass | Nickel plated | CATIII 1000V/Max.32A |
| 13008-044 | P246 | ABS | Brass | Nickel plated | 30Vac-60Vdc/Max 19A |
| 13008-045 | P247 | ABS | Brass | Nickel plated | 30Vac-60Vdc/Max 24A |
