Test Lead
- Model Code: 13007
- Brand:
Detail Specifications
| Model Code | Manufacturer Code | Feature | Rated voltage/current |
| 13007-001 | TL010 |
Test lead with the 1mm gold plated plug on both ends. |
30Vac-60Vdc/Max.6A 0.20mm2 PVC 025 050 |
| 13007-002 | TL020 |
Test lead with the 2mm gold plated plug on both ends.
|
30Vac-60Vdc/Max.10A 0.50mm2 PVC 025 050 |
| 13007-003 | TL030 |
Test lead with the 2mm gold plated plug on both ends. |
30Vac-60Vdc/Max.10A 0.50mm2 PVC 025 050 |
| 13007-004 | TL040 |
Test lead with the 2mm gold plated plug on both ends. |
30Vac-60Vdc/Max.10A 0.50mm2 SIL 025 050 100 |
| 13007-005 | TL050 |
Test lead with the 2mm stackable gold plated plug on both ends.
|
30Vac-60Vdc/Max.10A 0.50mm2 PVC 025 050 100 |
| 13007-006 | TL060 |
Test lead with the 2mm stackable gold plated plug on both ends.
|
30Vac-60Vdc/Max.10A 0.50mm2 SIL 025 050 100 |
| 13007-007 | TL070 |
Test lead with the 2mm stackable gold plated plug on both ends. |
30Vac-60Vdc/Max.10A 0.50mm2 PVC 025 050 100 |
| 13007-008 | TL080 |
Test lead with the 2mm stackable gold plated plug on both ends. |
30Vac-60Vdc/Max.10A 0.50mm2 SIL 025 050 100 |

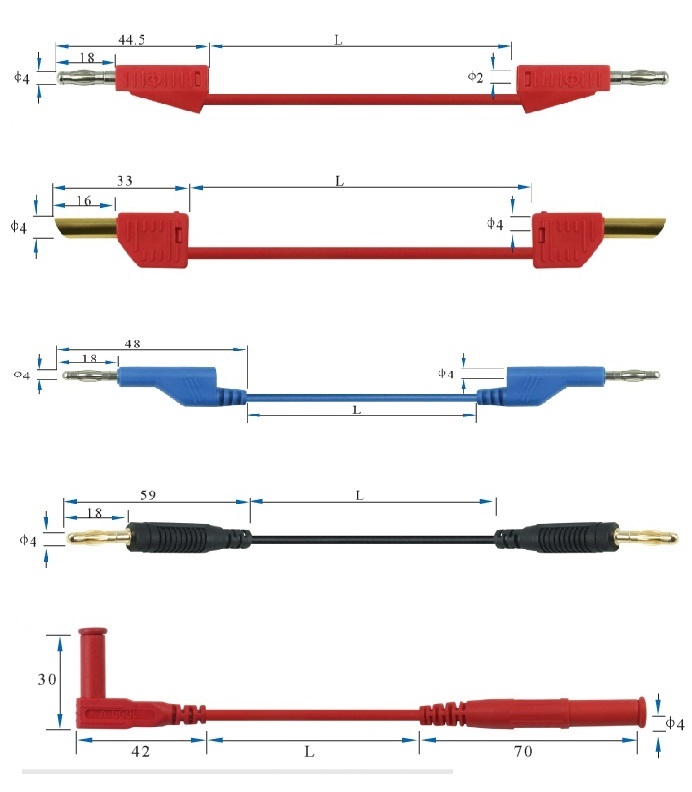

| 13007-009 | TL090 |
Test lead with the 4mm stackable nickel plated plug on both ends.
|
30Vac-60Vdc/Max.15A 0.75mm2 PVC 025 050 100 |
| 13007-010 | TL100 |
Test lead with the 4mm stackable nickel plated plug on both ends.
|
30Vac-60Vdc/Max.15A 0.75mm2 SIL 025 050 100 |
| 13007-011 | TL110 |
Test lead with the 4mm stackable nickel plated plug on both ends.
|
30Vac-60Vdc/Max.19A 1.0mm2 JBF 025 050 100 |
| 13007-012 | TL120 |
Test lead with the 4mm stackable gold plated plug on both ends. |
Test lead with the 4mm stackable gold plated plug on both ends. |
| 13007-013 | TL130 |
Test lead with the 4mm stackable gold plated plug on both ends. |
30Vac-60Vdc/Max.15A 0.75mm2 SIL 025 050 100 |
| 13007-014 | TL140 |
Test lead with the 4mm stackable gold plated plug on both ends. |
30Vac-60Vdc/Max.19A 1.0mm2 JBF 025 050 100 |
| 13007-015 | TL150 |
Test lead with the injected 4mm satckable nickel plated plug on both ends.
|
30Vac-60Vdc/Max.15A 0.75mm2 PVC 025 050 100 |
| 13007-016 | TL160 |
Test lead with the injected 4mm satckable nickel plated plug on both ends.
|
30Vac-60Vdc/Max.15A 0.75mm2 SIL 025 050 100 |
| 13007-017 | TL170 |
Test lead with the injected 4mm satckable nickel plated plug on both ends.
|
30Vac-60Vdc/Max.32A 2.5mm2 SIL 025 050 100 |
| 13007-018 | TL180 |
Test lead with the 4mm nickel plated plug on both ends. |
30Vac-60Vdc/Max.15A 0.75mm2 PVC 025 050 100 |
| 13007-019 | TL190 |
Test lead with the 4mm nickel plated plug on both ends. |
30Vac-60Vdc/Max.15A 0.75mm2 SIL 025 050 100 |
| 13007-020 | TL200 |
Test lead with the 4mm nickel plated plug on both ends. |
30Vac-60Vdc/Max.19A 1.0mm2 JBF 025 050 100 |
| 13007-021 | TL210 |
Safety test lead one end with the insulated 4mm straight plug and the other end with the insulated 4mm angled plug.Nickel plated plugs with the protective cap. Injected type.
|
CATIII 1000V/15A 0.75mm2 PVC 025 050 100 CE |
| 13007-022 | TL220 |
Safety test lead one end with the insulated 4mm straight plug and the other end with the insulated 4mm angled plug.Nickel plated plugs with the protective cap. Injected type.
|
CATIII 1000V/19A 1.0mm2 JBF 025 050 100 CE |
| 13007-023 | TL230 |
Safety test lead one end with the insulated 4mm straight plug and the other end with the insulated 4mm angled plug.Nickel plated plugs with the protective cap. Injected type.
|
CATIII 1000V/32A 2.5mm2 SIL 025 050 100 CE |

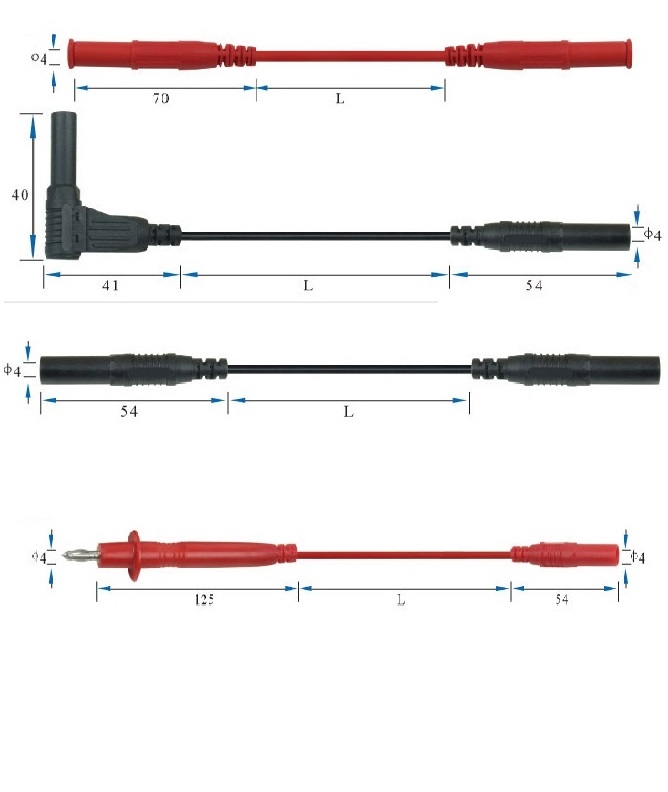

| 13007-024 | TL240 |
Safety test lead with the insulated 4mm angled plug on both ends.Nickel plated plugs with the protective cap. Injected type. |
CATIII 1000V/15A 0.75mm2 PVC 025 050 100 CE |
| 13007-025 | TL250 |
Safety test lead with the insulated 4mm angled plug on both ends.Nickel plated plugs with the protective cap. Injected type. |
CATIII 1000V/19A 1.0mm2 JBF 025 050 100 CE |
| 13007-026 | TL260 |
Safety test lead with the insulated 4mm angled plug on both ends.Nickel plated plugs with the protective cap. Injected type. |
CATIII 1000V/32A 2.5mm2 SIL 025 050 100 CE |
| 13007-027 | TL270 |
Safety test lead one end with the insulated 4mm straight plug and the other end with the insulated 4mm angled plug.Nickel plated plugs with the protective cap. Assembled type.
|
CATIII 1000V/15A 0.75mm2 PVC 025 050 100 CE |
| 13007-028 | TL280 |
Safety test lead one end with the insulated 4mm straight plug and the other end with the insulated 4mm angled plug.Nickel plated plugs with the protective cap. Assembled type.
|
CATIII 1000V/19A 1.0mm2 JBF 025 050 100 CE |
| 13007-029 | TL290 |
Safety test lead one end with the insulated 4mm straight plug and the other end with the insulated 4mm angled plug.Nickel plated plugs with the protective cap. Assembled type.
|
CATIII 1000V/32A 2.5mm2 SIL 025 050 100 CE |
| 13007-030 | TL300 |
Safety test lead with the insulated 4mm straight plug on both ends.Nickel plated plugs with the protective cap. Assembled type. |
CATIII 1000V/15A 0.75mm2 PVC 025 050 100 CE |
| 13007-031 | TL310 |
Safety test lead with the insulated 4mm straight plug on both ends.Nickel plated plugs with the protective cap. Assembled type. |
CATIII 1000V/19A 1.0mm2 JBF 025 050 100 CE |
| 13007-032 | TL320 |
Safety test lead with the insulated 4mm straight plug on both ends.Nickel plated plugs with the protective cap. Assembled type. |
CATIII 1000V/32A 2.5mm2 SIL 025 050 100 CE |
| 13007-033 | TL330 |
Test lead one end with the test probe and the other with the insulated 4mm straight plug. Nickel plated and assembled type.
|
CATIII 1000V/15A 0.75mm2 PVC 025 050 100 CE |
| 13007-034 | TL340 |
Test lead one end with the test probe and the other with the insulated 4mm straight plug. Nickel plated and assembled type.
|
CATIII 1000V/19A 1.0mm2 JBF 025 050 100 CE |
| 13007-035 | TL350 |
Test lead one end with the test probe and the other with the insulated 4mm straight plug. Nickel plated and assembled type.
|
CATIII 1000V/32A 2.5mm2 SIL 025 050 100 CE |

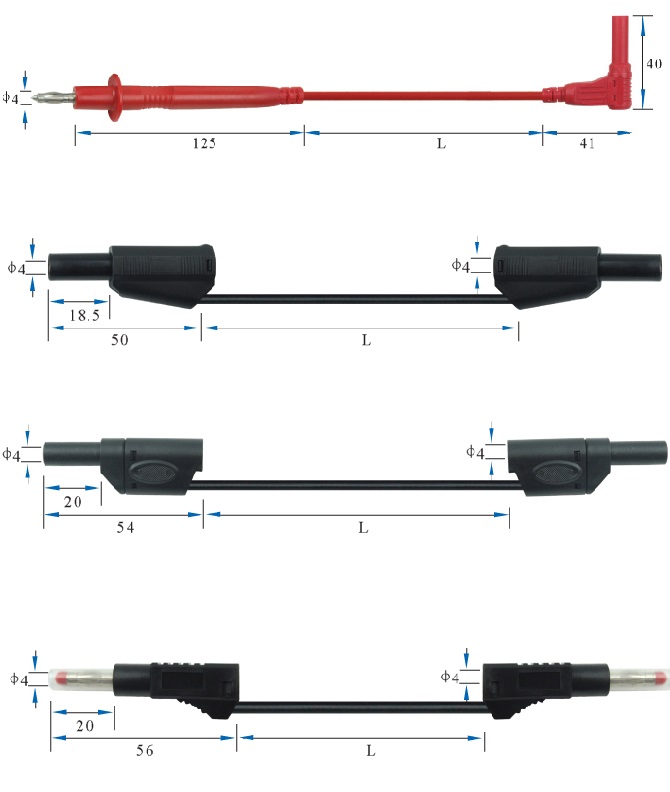

| 13007-036 | TL360 |
Test lead one end with the test probe and the other with the insulated 4mm angled plug. Nickel plated and assembled type. |
CATIII 1000V/15A 0.75mm2 PVC 025 050 100 CE |
| 13007-037 | TL370 |
Test lead one end with the test probe and the other with the insulated 4mm angled plug. Nickel plated and assembled type. |
CATIII 1000V/19A 1.0mm2 JBF 025 050 100 CE |
| 13007-038 | TL380 |
Test lead one end with the test probe and the other with the insulated 4mm angled plug. Nickel plated and assembled type. |
CATIII 1000V/32A 2.5mm2 SIL 025 050 100 CE |
| 13007-039 | TL390 |
Safety test lead with the insulated 4mm stackable plug on both ends. Nickel plated plugs with the red cap.
|
CATIII 600V/19A 1.0mm2 JBF 025 050 100 CE |
| 13007-040 | TL400 |
Safety test lead with the insulated 4mm stackable plug on both ends. Nickel plated plugs with the red cap.
|
CATIII 600V/32A 2.5mm2 JBF 025 050 100 CE |
| 13007-041 | TL410 |
Safety test lead with the insulated 4mm stackable plug on both ends. Nickel plated plugs with the red cap.
|
CATIII 600V/32A 2.5mm2 SIL 025 050 100 CE |
| 13007-042 | TL420 |
Safety test lead with the insulated 4mm stackable plug on both ends. Nickel plated plugs with the red cap. |
CATIII 600V-CATII 1000V/19A 1.0mm2 JBF 025 050 100 CE |
| 13007-043 | TL430 |
Safety test lead with the insulated 4mm stackable plug on both ends. Nickel plated plugs with the red cap. |
CATIII 600V-CATII 1000V/32A 2.5mm2 JBF 025 050 100 CE |
| 13007-044 | TL440 |
Safety test lead with the insulated 4mm stackable plug on both ends. Nickel plated plugs with the red cap. |
CATIII 600V-CATII 1000V/32A 2.5mm2 SIL 025 050 100 CE |
| 13007-045 | TL450 |
Safety test lead with 4mm stackable plug on both ends. Nickel plated plugs with the shrinkable tube and red cap.
|
CATII 600V/19A 1.0mm2 JBF 025 050 100 CE |
| 13007-046 | TL460 |
Safety test lead with 4mm stackable plug on both ends. Nickel plated plugs with the shrinkable tube and red cap.
|
CATII 600V/32A 2.5mm2 JBF 025 050 100 CE |
| 13007-047 | TL470 |
Safety test lead with 4mm stackable plug on both ends. Nickel plated plugs with the shrinkable tube and red cap.
|
CATII 600V/32A 2.5mm2 SIL 025 050 100 CE |

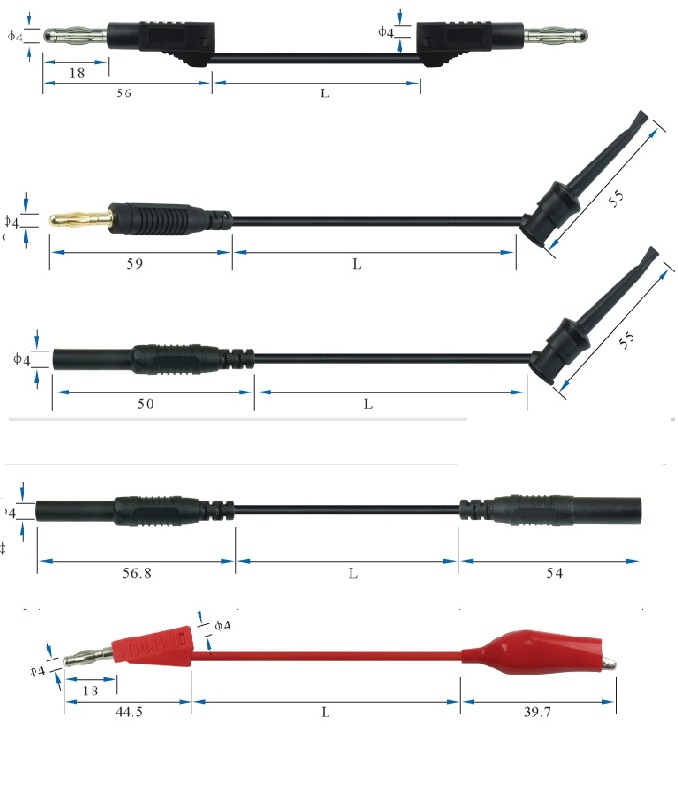

| 13007-048 | TL480 |
Test lead with the injected 4mm satckable nickel plated plug on both ends. |
30Vac-60Vdc/Max.15A 1.0mm2 JBF 025 050 100 |
| 13007-049 | TL490 |
Test lead with the injected 4mm satckable nickel plated plug on both ends. |
30Vac-60Vdc/Max.15A 2.5mm2 JBF 025 050 100 |
| 13007-050 | TL500 |
Test lead with the injected 4mm satckable nickel plated plug on both ends. |
30Vac-60Vdc/Max.32A 2.5mm2 SIL 025 050 100 |
| 13007-051 | TL510 |
Test lead one end with 4mm stackable nickel plated plug and the other end with 55mm length nickel plated crocodile clip.
|
30Vac-60Vdc/Max.15A 0.75mm2 PVC 025 050 100 |
| 13007-052 | TL520 |
Test lead one end with 4mm stackable nickel plated plug and the other end with 55mm length nickel plated crocodile clip.
|
30Vac-60Vdc/Max.15A 0.75mm2 SIL 025 050 100 |
| 13007-053 | TL530 |
Test lead one end with 4mm stackable nickel plated plug and the other end with 55mm length nickel plated crocodile clip. |
30Vac-60Vdc/Max.15A 0.75mm2 PVC 025 050 100 |
| 13007-054 | TL540 |
Test lead one end with 4mm stackable nickel plated plug and the other end with 55mm length nickel plated crocodile clip. |
30Vac-60Vdc/Max.15A 0.75mm2 SIL 025 050 100 |
| 13007-055 | TL550 |
Safety test lead one end with insulated 4mm straight plug and the other with the Nickel plated plugs with the protective cap.
|
CATIII 1000V/15A 0.75mm2 PVC 025 050 100 CE |
| 13007-056 | TL560 |
Safety test lead one end with insulated 4mm straight plug and the other with the Nickel plated plugs with the protective cap.
|
CATIII 1000V/15A 0.75mm2 SIL 025 050 100 CE |
| 13007-057 | TL570 |
Test lead one end with the 4mm stackable nicket plated plug and the other end with 55mm length nickel plated crocodile clip. |
30Vac-60Vdc/Max.15A 0.75mm2 PVC 025 050 100 |
| 13007-058 | TL580 |
Test lead one end with the 4mm stackable nicket plated plug and the other end with 55mm length nickel plated crocodile clip.
|
30Vac-60Vdc/Max.15A 0.75mm2 SIL 025 050 100 |
