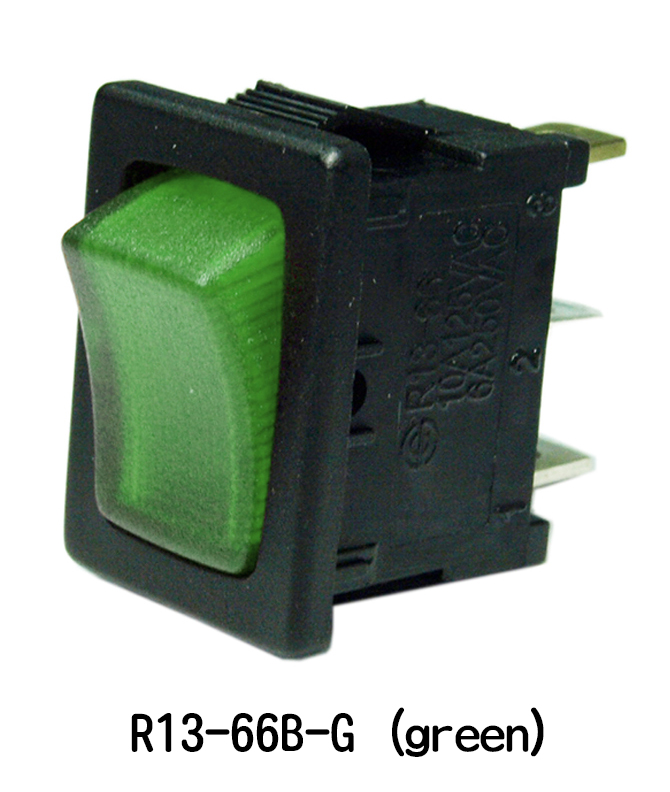

Miniature Rocker Switch illuminated, SP, cut out 19.4* 13 mm
- Model Code: 10102
- Manufacturer Code: R13-66
- Brand: SCI
- Product Category: Switches
- Minimum Order Qty:500
Detail Specifications
Application: Household electronics, Control panel
Mount hole & type: 19.4*13 mm, snap in
Rating: 16A/125VAC, 1/3HP, 10A/250VAC, 1/2HP, 16A/12VDC (as specified)
Terminal type: 0.187” quick
Term Qty: 3
Pole: SPST
Flame: UL 94V-2
Print: Blank
Approval: .jpg)
|
Model Code |
Manufacturer |
Circuit |
Illuminated |
Rating |
|
|
AC |
DC |
||||
|
10102-001 |
R13-66B-02-R |
on-off |
red |
125 |
|
|
10102-002 |
R13-66B-02-G |
on-off |
green |
125 |
|
|
10102-003 |
R13-66B-02-A |
on-off |
amber |
125 |
|
|
10102-004 |
R13-66B-02-U |
on-off |
blue |
125 |
|
|
10102-005 |
R13-66B-02-R |
on-off |
red |
250 |
|
|
10102-006 |
R13-66B-02-G |
on-off |
green |
250 |
|
|
10102-007 |
R13-66B-02-A |
on-off |
amber |
250 |
|
|
10102-008 |
R13-66B-02-U |
on-off |
blue |
250 |
|
|
10102-009 |
R13-66B-02-R |
on-off |
red |
|
12V |
|
10102-010 |
R13-66B-02-G |
on-off |
green |
|
12V |
|
10102-011 |
R13-66B-02-A |
on-off |
amber |
|
12V |
|
10102-012 |
R13-66B-02-U |
on-off |
blue |
|
12V |
|
10102-013 |
R13-66BF-02-R |
(on)-off |
red |
125 |
|
|
10102-014 |
R13-66BF-02-G |
(on)-off |
green |
125 |
|
|
10102-015 |
R13-66BF-02-A |
(on)-off |
amber |
125 |
|
|
10102-016 |
R13-66BF-02-U |
(on)-off |
blue |
125 |
|
|
10102-017 |
R13-66BF-02-R |
(on)-off |
red |
250 |
|
|
10102-018 |
R13-66BF-02-G |
(on)-off |
green |
250 |
|
|
10102-019 |
R13-66BF-02-A |
(on)-off |
amber |
250 |
|
|
10102-020 |
R13-66BF-02-U |
(on)-off |
blue |
250 |
|
|
10102-021 |
R13-66BF-02-R |
(on)-off |
red |
|
12V |
|
10102-022 |
R13-66BF-02-G |
(on)-off |
green |
|
12V |
|
10102-023 |
R13-66BF-02-A |
(on)-off |
amber |
|
12V |
|
10102-024 |
R13-66BF-02-U |
(on)-off |
blue |
|
12V |
|
10102-025 |

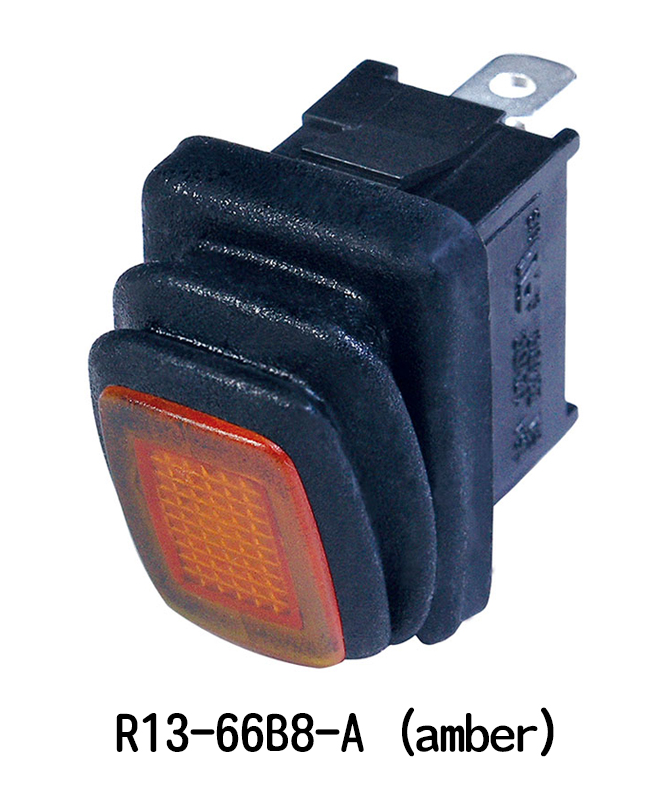

R13-66B8-02-R |
on-off |
red |
125 |
|
|
10102-026 |
R13-66B8-02-G |
on-off |
green |
125 |
|
|
10102-027 |
R13-66B8-02-A |
on-off |
amber |
125 |
|
|
10102-028 |
R13-66B8-02-U |
on-off |
blue |
125 |
|
|
10102-029 |
R13-66B8-02-R |
on-off |
red |
250 |
|
|
10102-030 |
R13-66B8-02-G |
on-off |
green |
250 |
|
|
10102-031 |
R13-66B8-02-A |
on-off |
amber |
250 |
|
|
10102-032 |
R13-66B8-02-U |
on-off |
blue |
250 |
|
|
10102-033 |
R13-66B8-02-R |
on-off |
red |
|
12V |
|
10102-034 |
R13-66B8-02-G |
on-off |
green |
|
12V |
|
10102-035 |
R13-66B8-02-A |
on-off |
amber |
|
12V |
|
10102-036 |
R13-66B8-02-U |
on-off |
blue |
|
12V |
|
10102-037 |
R13-66B8F-02-R |
(on)-off |
red |
125 |
|
|
10102-038 |
R13-66B8F-02-G |
(on)-off |
green |
125 |
|
|
10102-039 |
R13-66B8F-02-A |
(on)-off |
amber |
125 |
|
|
10102-040 |
R13-66B8F-02-U |
(on)-off |
blue |
125 |
|
|
10102-041 |
R13-66B8F-02-R |
(on)-off |
red |
250 |
|
|
10102-042 |
R13-66B8F-02-G |
(on)-off |
green |
250 |
|
|
10102-043 |
R13-66B8F-02-A |
(on)-off |
amber |
250 |
|
|
10102-044 |
R13-66B8F-02-U |
(on)-off |
blue |
250 |
|
|
10102-045 |
R13-66B8F-02-R |
(on)-off |
red |
|
12V |
|
10102-046 |
R13-66B8F-02-G |
(on)-off |
green |
|
12V |
|
10102-047 |
R13-66B8F-02-A |
(on)-off |
amber |
|
12V |
|
10102-048 |
R13-66B8F-02-U |
(on)-off |
blue |
|
12V |
Accessories (Optional)

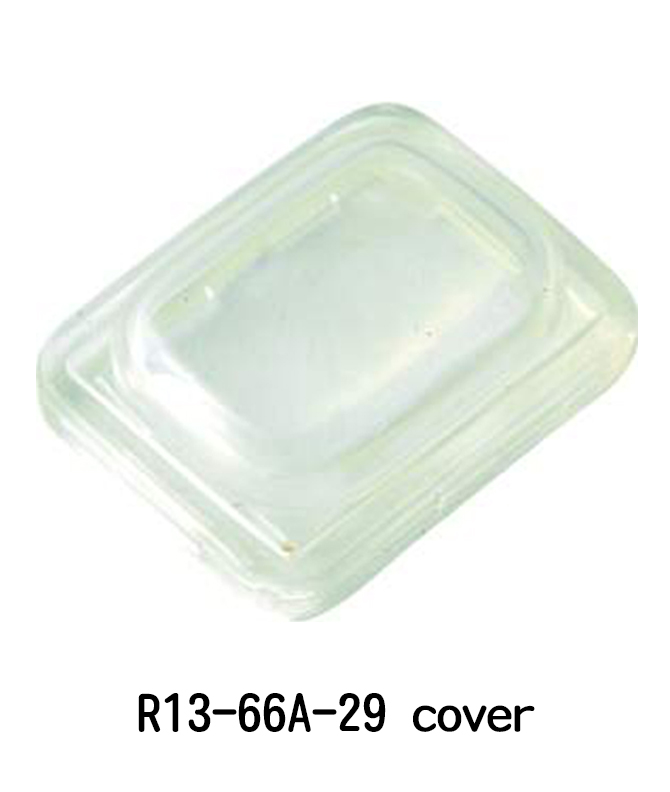

10101-099 Transparent cover
