Miniature Rocker Switch Illuminated Lens, SP, cut out 19.4* 13 mm
- Model Code: 10103
- Manufacturer Code: R13-66
- Brand: SCI
- Product Category: Switches
- Minimum Order Qty:500
Detail Specifications
Application: Household electronics, Control panel
Mount hole & type: 19.4*13 mm, snap in
Rating: 16A/125VAC, 1/3HP, 10A/250VAC, 1/2HP, 16A/12VDC (as specified)
Terminal type: 0.187” quick
Pole: SPST
Flame: UL 94V-2
Approval: .jpg)
|
Model Code |
Manufacturer Code |
Circuit |
Term Qty |
Illuminated |
Rating |
|
|
AC |
DC |
|||||
|

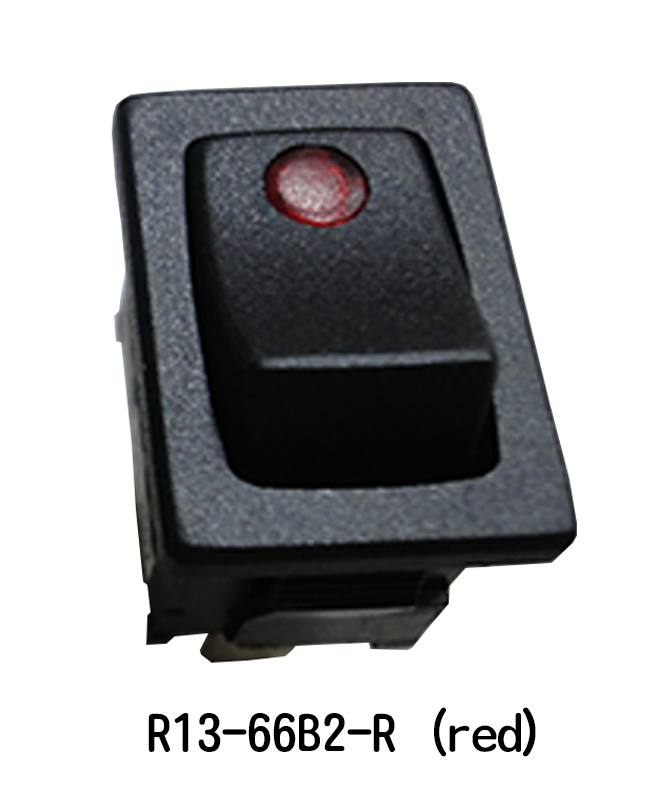

10103-001 |
R13-66B2-02-R |
on-off |
3 |
red |
125V |
|
|

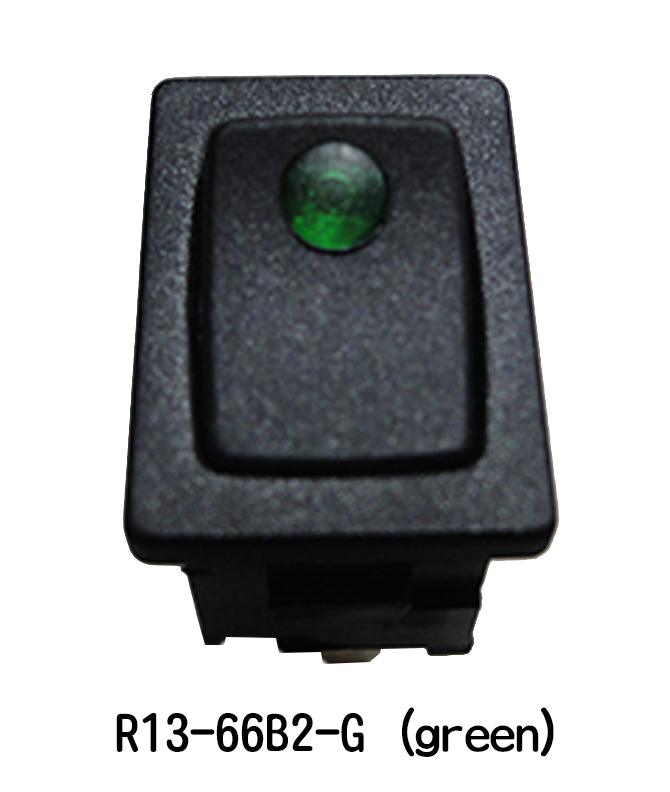

10103-002 |
R13-66B2-02-G |
on-off |
3 |
green |
125V |
|
|
10103-003 |
R13-66B2-02-A |
on-off |
3 |
amber |
125V |
|
|
10103-004 |
R13-66B2-02-U |
on-off |
3 |
blue |
125V |
|
|
10103-005 |
R13-66B2-02-R |
on-off |
3 |
red |
250V |
|
|
10103-006 |
R13-66B2-02-G |
on-off |
3 |
green |
250V |
|
|
10103-007 |
R13-66B2-02-A |
on-off |
3 |
amber |
250V |
|
|
10103-008 |
R13-66B2-02-U |
on-off |
3 |
blue |
250V |
|
|
10103-009 |
R13-66B2-02-R |
on-off |
3 |
red |
|
12V |
|
10103-010 |
R13-66B2-02-G |
on-off |
3 |
green |
|
12V |
|
10103-011 |
R13-66B2-02-A |
on-off |
3 |
amber |
|
12V |
|
10103-012 |
R13-66B2-02-U |
on-off |
3 |
blue |
|
12V |
|
10103-013 |
R13-66B2F-02-R |
(on)-off |
3 |
red |
125V |
|
|
10103-014 |
R13-66B2F-02-G |
(on)-off |
3 |
green |
125V |
|
|
10103-015 |
R13-66B2F-02-A |
(on)-off |
3 |
amber |
125V |
|
|
10103-016 |
R13-66B2F-02-U |
(on)-off |
3 |
blue |
125V |
|
|
10103-017 |
R13-66B2F-02-R |
(on)-off |
3 |
red |
250V |
|
|
10103-018 |
R13-66B2F-02-G |
(on)-off |
3 |
green |
250V |
|
|
10103-019 |
R13-66B2F-02-A |
(on)-off |
3 |
amber |
250V |
|
|
10103-020 |
R13-66B2F-02-U |
(on)-off |
3 |
blue |
250V |
|
|
10103-021 |
R13-66B2F-02-R |
(on)-off |
3 |
red |
|
12V |
|
10103-022 |
R13-66B2F-02-G |
(on)-off |
3 |
green |
|
12V |
|
10103-023 |
R13-66B2F-02-A |
(on)-off |
3 |
amber |
|
12V |
|
10103-024 |
R13-66B2F-02-U |
(on)-off |
3 |
blue |
|
12V |
|

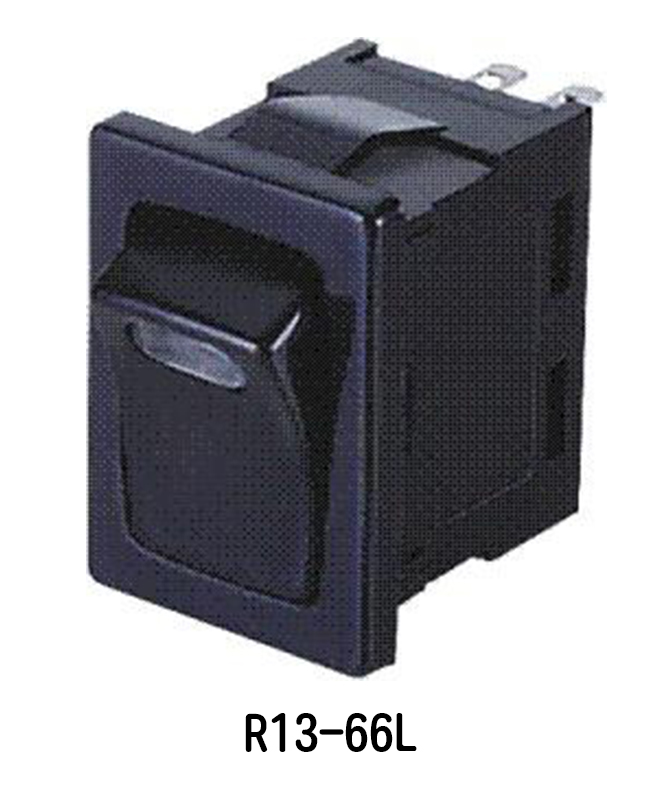

10103-025 |
R13-66L-02-R |
on-off |
4 |
red(LED) |
|
12V |
|
10103-026 |
R13-66L-02-G |
on-off |
4 |
green(LED) |
|
12V |
|
10103-027 |
R13-66L-02-A |
on-off |
4 |
amber(LED) |
|
12V |
|
10103-028 |
R13-66L-02-U |
on-off |
4 |
blue(LED) |
|
12V |
|
10103-029 |
R13-66L-02-W |
on-off |
4 |
white(LED) |
|
12V |
Accessories (Optional)
10101-099 Transparent cover
