Miniature Rocker Switch, SP, cut out 19.4* 13 mm
- Model Code: 10101
- Manufacturer Code: R13-66
- Brand: SCI
- Product Category: Switches
- Minimum Order Qty:500
Detail Specifications
Application: Household electronics, Control panel
Mount hole & type: 19.4*13 mm, snap in
Rating: 16A/125VAC, 1/3HP, 10A/250VAC, 1/2HP, 16A/12VDC (as specified)
Terminal type: 0.187” quick
Flame: UL 94V-2
Approval: .jpg)
| Model Code | Manufacturer Code | Pole | Circuit | Term Qty | Rocker color | Rating | ||
| AC | DC | |||||||
| 10101-001 | R13-66A-02 | SPST | on-off | 2 | black | blank | X | X |
| 10101-002 | R13-66A-02 | SPST | on-off | 2 | black | o - | X | X |
| 10101-003 | R13-66A-02-R | SPST | on-off | 2 | red | blank | X | X |
| 10101-004 | R13-66A-02-R | SPST | on-off | 2 | red | o - | X | X |

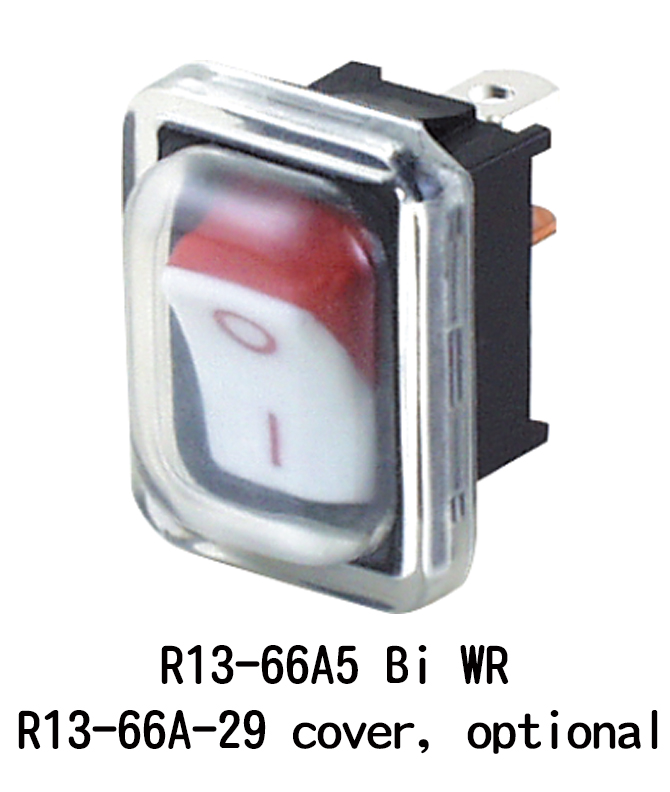

| 10101-005 | R13-66A5-02-Bi-WR | SPST | on-off | 2 | Bi-white/red | o- | X | X |

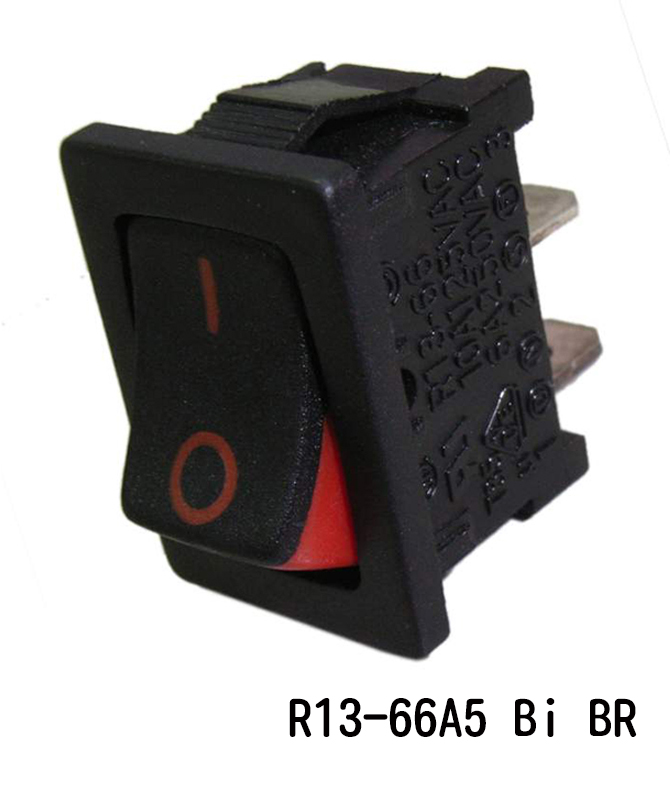

| 10101-006 | R13-66A5-02-Bi BR | SPST | on-off | 2 | Bi-black/red | o -(red) | X | X |
| 10101-007 | R13-66E-02 | SPST | (off)-on | 2 | black | blank | X | X |
| 10101-008 | R13-66E-02 | SPST | (off)-on | 2 | black | o - | X | X |
| 10101-009 | R13-66F-02 | SPST | off-(on) | 2 | black | blank | X | X |
| 10101-010 | R13-66F-02 | SPST | off-(on) | 2 | black | o - | X | X |
| 10101-011 | R13-66C-02 | SPDT | on-on | 3 | black | blank | X | X |
| 10101-012 | R13-66G-02 | SPDT | on-(on) | 3 | black | blank | X | X |

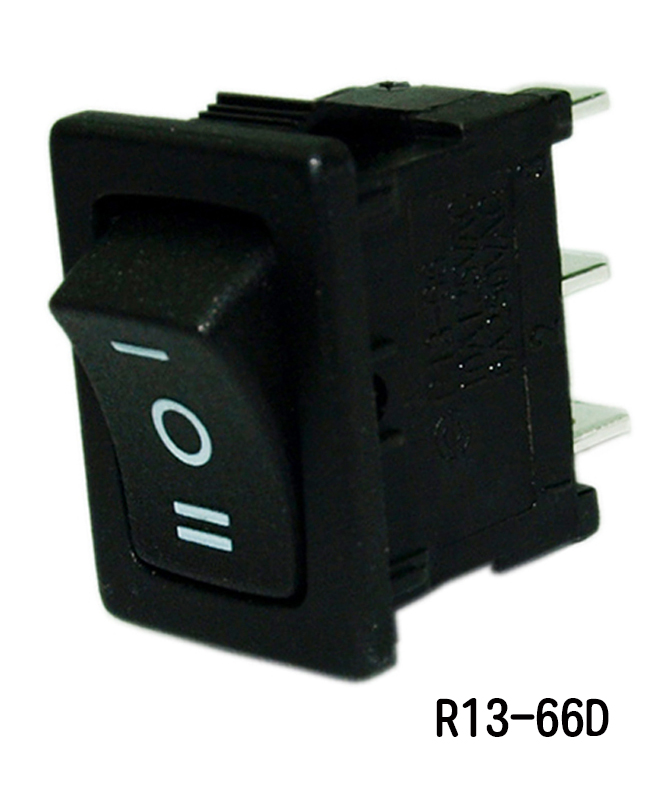

| 10101-013 | R13-66D-02 | SPDT | on-off-on | 3 | black | blank | X | X |
| 10101-014 | R13-66D-02 | SPDT | on-off-on | 3 | black | I o II | X | X |
| 10101-015 | R13-66H-02 | SPDT | (on)-off-on | 3 | black | blank | X | X |
| 10101-016 | R13-66H-02 | SPDT | (on)-off-on | 3 | black | I o II | X | X |

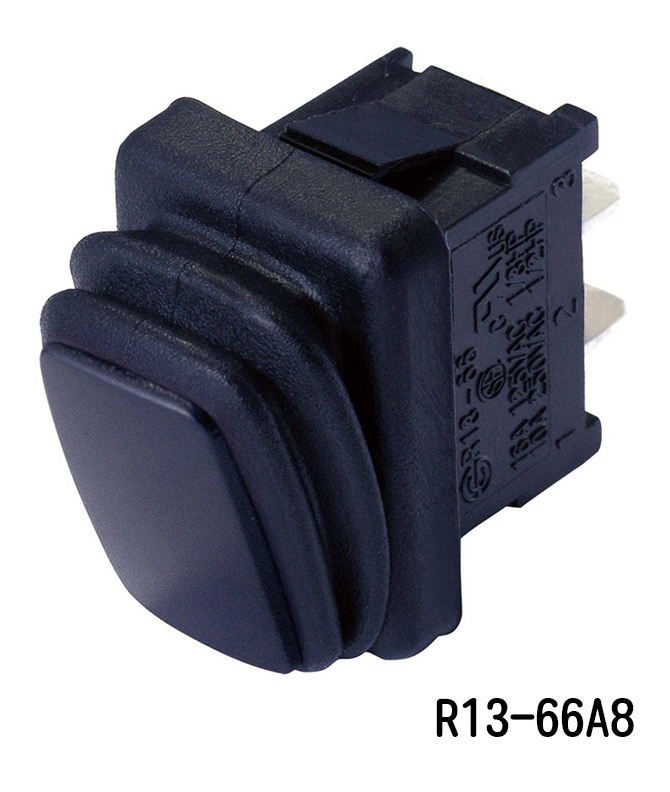

| 10101-017 | R13-66A8-02 | SPST | on-off | 2 | black | blank | X | X |
| 10101-018 | R13-66E8-02 | SPST | on-(off) | 2 | black | blank | X | X |
| 10101-019 | R13-66F8-02 | SPST | (on)-off | 2 | black | blank | X | X |
| 10101-020 | R13-66C8-02 | SPDT | on-on | 3 | black | blank | X | X |
| 10101-021 | R13-66G8-02 | SPDT | (on)-on | 3 | black | blank | X | X |
Accessories (Optional)
10101-099 Transparent cover
